Laser Scanner

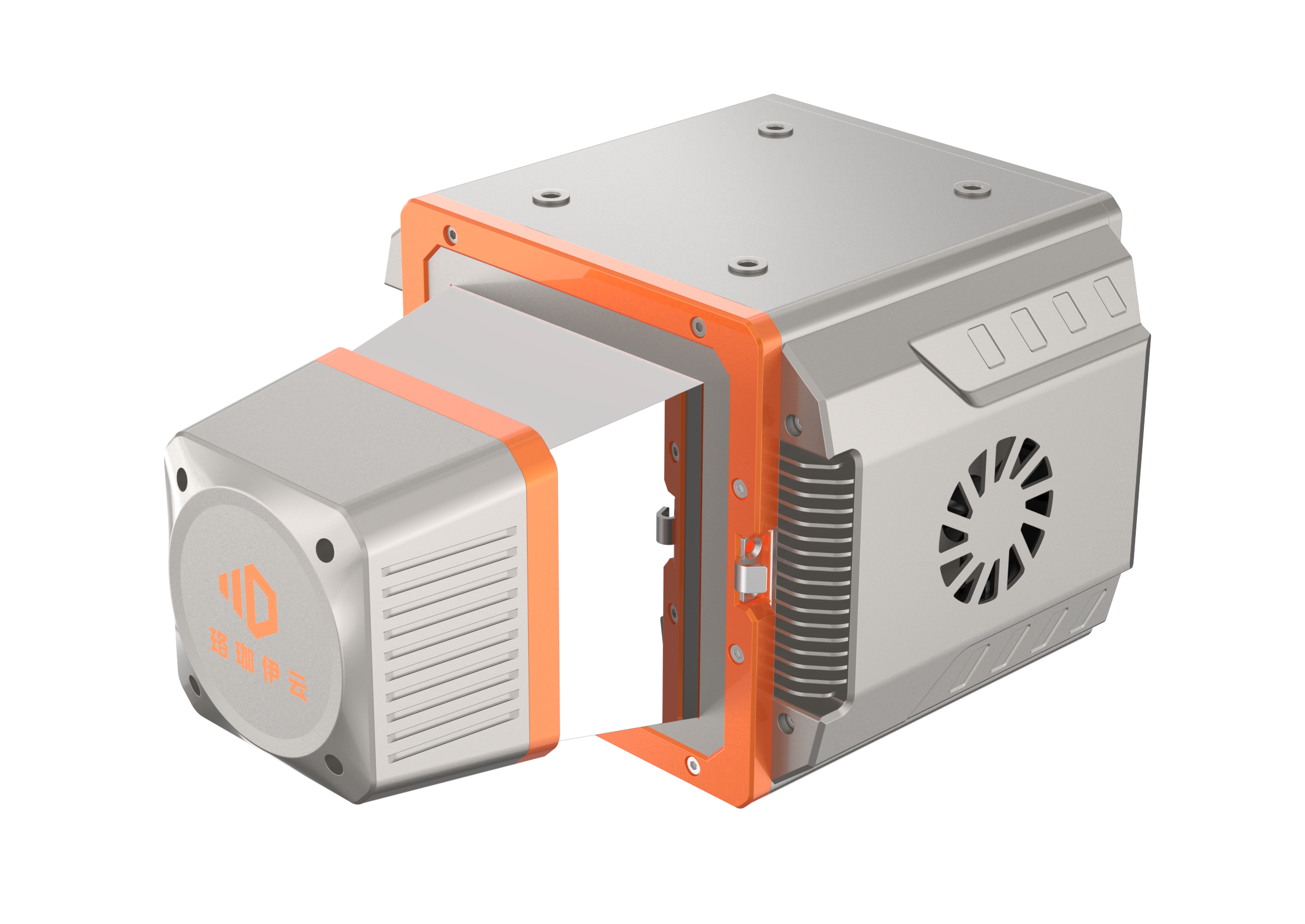

PRO-360 Vehicle-Mounted Laser ScannerThis high-precision vehicle-mounted laser scanner features kilometer-level ranging capability, hundred-meter-level dynamic range, and millimeter-level ranging accuracy.
The PRO-360 scanner is a high-precision vehicle-mounted laser scanner. Its key core components, such as the high repetition-rate ranging module, high-speed scanning prism module, and high-precision angle measurement module, are all independently developed and possess proprietary intellectual property rights. The device has high-performance features, including a kilometer-level ranging capability, a hundred-meter-level dynamic range, and millimeter-level ranging accuracy. It can be widely applied in various fields such as 3D structural inspection of tunnels, measurement and inspection of existing railway lines, pavement disease detection, and road asset inventory.
Optical Parameters
| Laser Class | Class 1 |
| Laser Wavelength | 1550nm |
| Beam Divergence | 0.5mrad |
| Measurement Range | Airborne Mode: 1500m@80%, 700m@20% Vehicle Mode: 350m@60%, 200m@20% |
| Laser Pulse Repetition Rate | Max.2000kHz |
| Field of View | 360° |
| Angular Measurement Resolution | 0.001° |
| Measurement Technique | Pulse-Phase Type |
| Scan Rate | 25~200 lines/s |
Laser Parameters
| Repeatability Accuracy | 3mm@50m(1σ);5mm@100m(1σ) |
| Number of Echoes | Typical 7 Echoes |
| Echo Signal Intensity | 8 bit (radiometric calibration ) |
Size
| Weight | About 3.6 kg (laser scanner only) |
| Dimension | L×W×H 268×188×150 mm |
Work Environment
| Storage Temperature | -20℃~ +50℃ |
| Operating Temperature | -20℃~ +50℃ |
| Light Conditions | Natural Environment |
| Humidity | Non-condensing |
| Protection Level | IP64 |
Power Source
| Rated Voltage | 24 VDC (supports 20V-32V input range) |
| Power Consumption | Approximately 80 W |
Data Interface
| TCP/IP | Gigabit Ethernet |
| PPS Synchronization Signal | Falling Edge Valid (TTL level) |
| GNSS Signal Reception | RX (TTL level） |
