FT1500HLight and small domestic laser scanner to meet the development needs of a variety of applications.

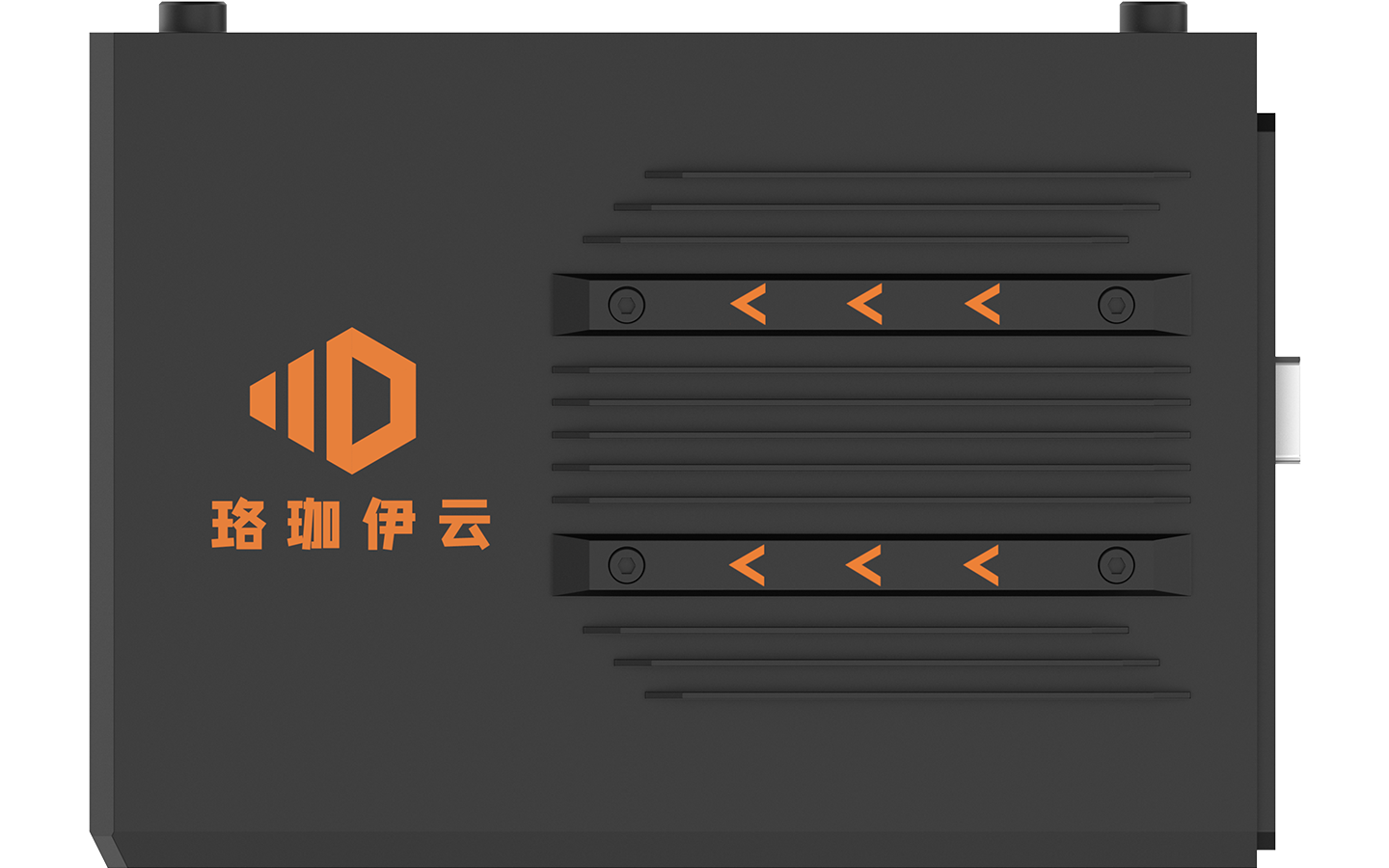

FT1500H is the first light and small domestic laser scanner launched by LuoJiaYiYun, which can be carried on multi-rotor UAV, hanging fixed wing UAV, helicopter and other aircraft. With an overall weight of 2.6kg and a distance of up to 1,500 m, the device can be applied to various harsh terrain conditions and has open data ports to meet the requirements for integrated sensors of various devices. With mature adaptability and stability, FT1500H can be widely used in terrain surveying, power inspection, mine surveying, emergency surveying, natural resources survey, 3D real scene and other fields.
FT1500H adopts high-speed rotating mirror scanning to generate linear, unidirectional, and parallel scanning lines to obtain uniformly distributed point cloud data. Based on LuoJiaYiYun digital full waveform online core processing technology, it can reach millimeter ranging accuracy, and has the detection ability of 7 echo. It has good penetrating ability to the target. In the case of poor atmospheric environment quality, it can also complete high-quality detection and provide rich levels of information.
Optical parameter
|
Laser class |
1 |
|
Laser wavelength |
1550nm |
|
Beam divergence |
0.5mrad |
|
Measuring range |
5m~1500m（@80% reflectivity） |
|
Laser emission repetition frequency |
100K~2000K |
|
Field Angle |
75° |
|
Angular resolution |
0.001° |
|
Ranging mode |
Pulse-phase type |
|
Scanline frequency |
300 /second |
Laser measurement
|
Relative repetition accuracy |
5mm@100m |
|
Multiecho |
7 echo |
|
Gray level |
8bit（Radiometric correction） |
Size
|
Equipment weight |
2.6kg |
|
Size |
Length * width * height 192*137*135mm |
Working environment
|
Operating temperature |
-20℃~ +55℃ |
|
Storage temperature |
-40℃~ +70℃ |
|
Light condition |
natural environment |
|
Humidity |
condensation free |
|
Level of protection |
Dustproof and waterproof IP64 |
Power supply
|
Rated voltage |
24 VDC（Input range 20V~32V） |
|
Power consumption |
<45W |
Data interface
|
Real-time control/data transfer |
TCP/IP |
|
GNSS signal reception |
PPS（Falling edge alignment ） RX（TTL level） |
