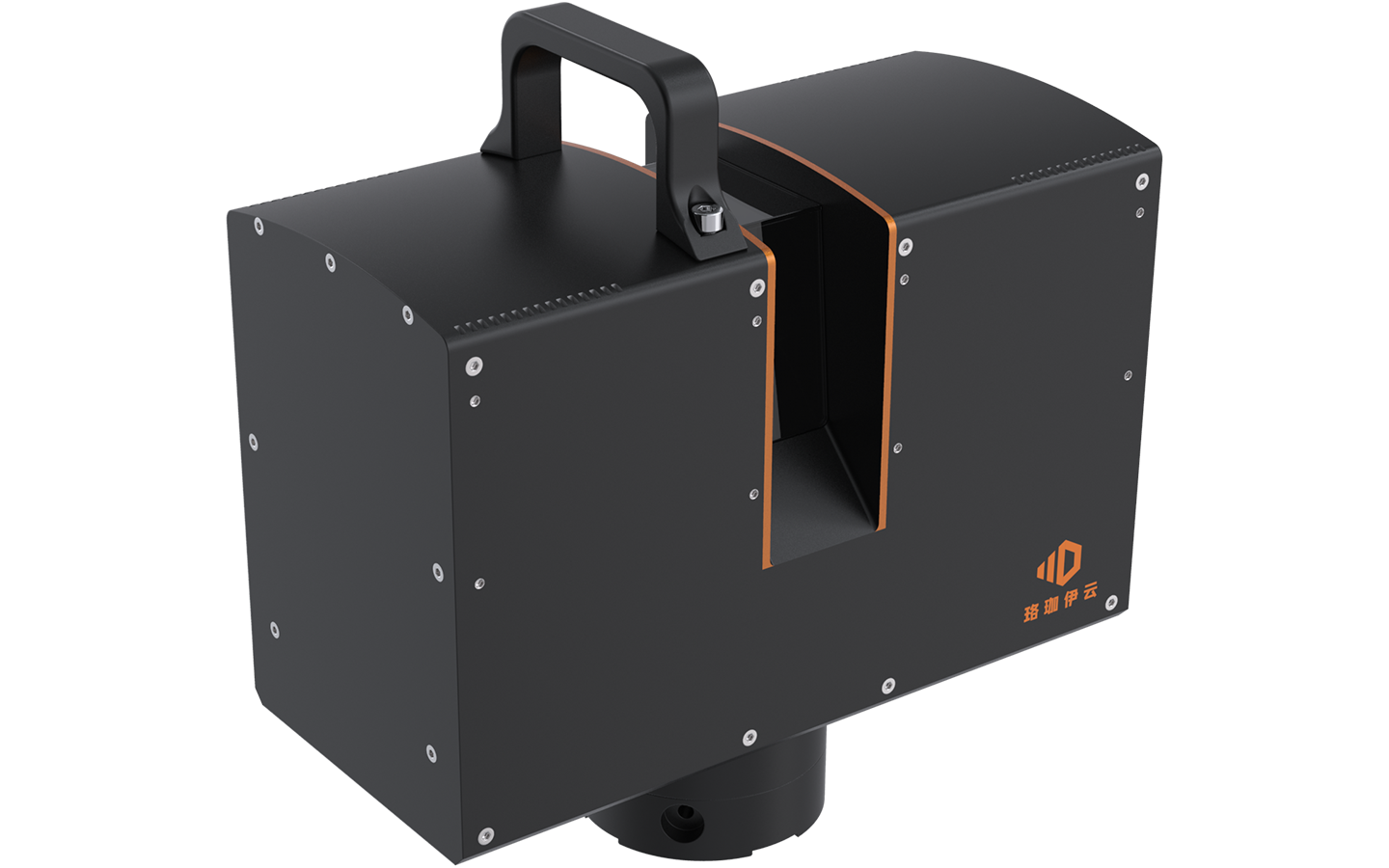

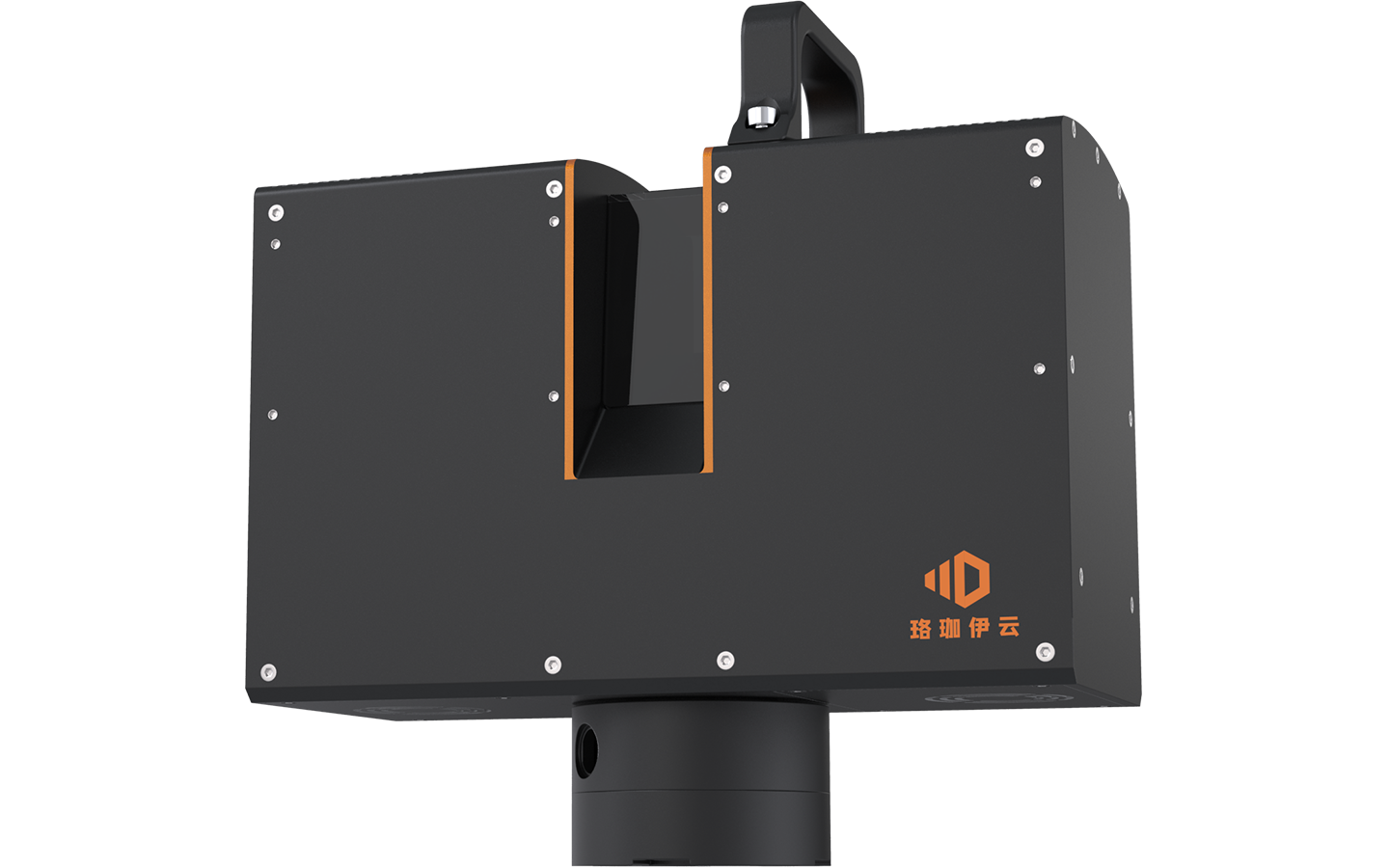

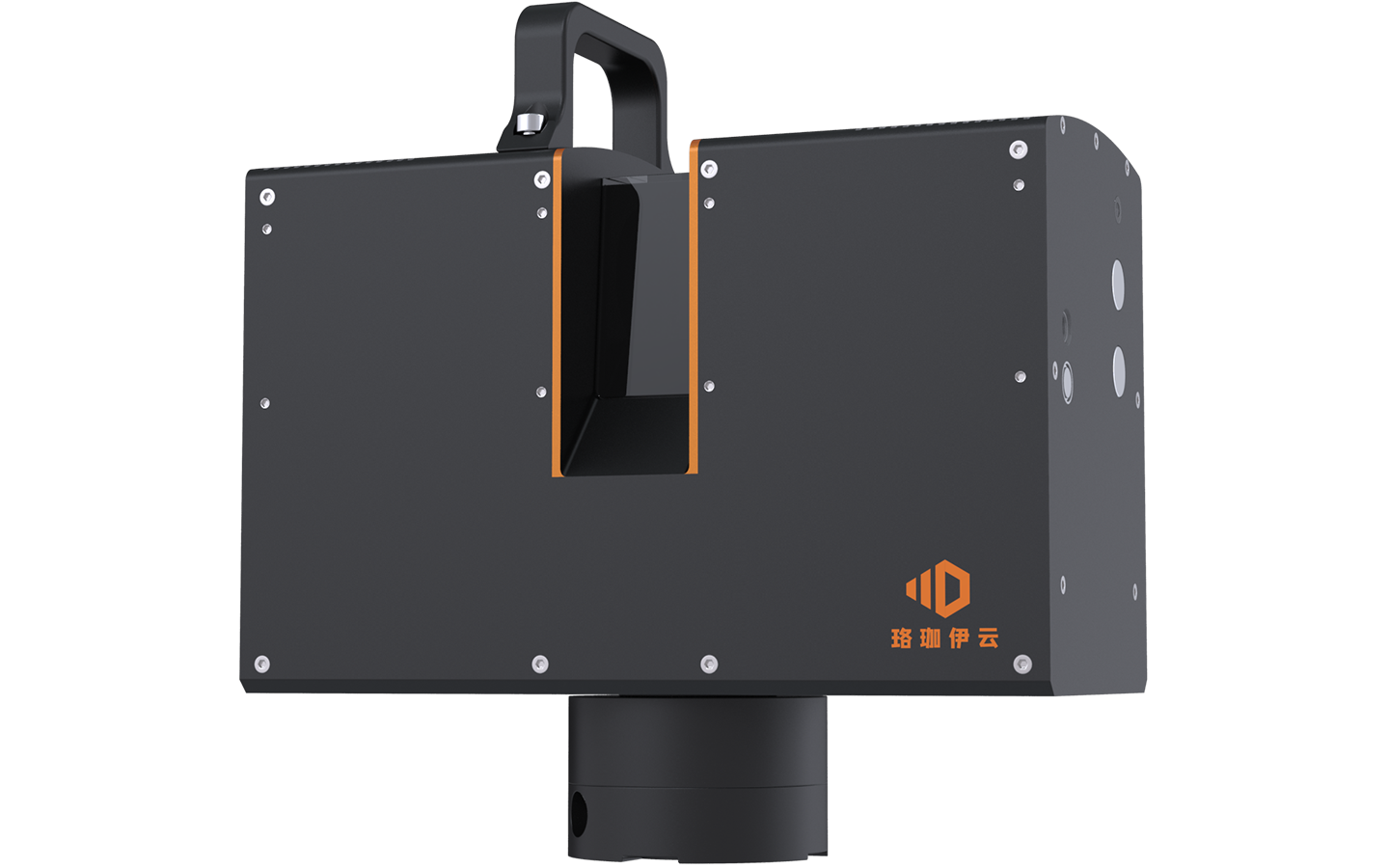

Ground 3D laser scanning system
HGS300
HGS-300 is the first ground-based 3D laser scanning system launched by LuoJiaYiYun. A 1550nm laser is used as the detection light source, which integrates self-developed high-precision laser scanning module, inclination sensor and data storage system. It can obtain high-precision point cloud data in various scenarios. Based on LuoJiaYiYun digital full waveform online core processing technology, it can reach millimeter ranging accuracy.
Optical parameter
|
Laser class |
1 |
|
Laser wavelength |
1550nm |
|
Beam divergence |
0.5mrad |
|
Measuring range |
0.5m~300m |
|
Laser emission repetition frequency |
max 2000K |
|
Field Angle |
270°×360° |
|
Angular resolution |
0.001° |
|
Ranging mode |
Pulse-phase type |
|
Scanline frequency |
150/second |
Laser measurement
|
Relative repetition accuracy |
3mm@100m |
|
Multiecho |
7 echo |
|
Gray level |
8bit（Radiation calibration） |
|
Biaxial inclination compensation accuracy |
superior to 0.001° |
|
Single station measurement time |
＜3min |
Size
|
Equipment weight |
7.0kg |
|
Size |
Length * width * height 284*128*184mm |
Working environment
|
Operating temperature |
-20℃~ +55℃ |
|
Storage temperature |
-40℃~ +70℃ |
|
Light condition |
natural environment |
|
Humidity |
condensation free |
|
Level of protection |
Dustproof and waterproof IP64 |
Power supply
|
Rated voltage |
18~36VDC |
|
Power consumption |
＜60W |
Data interface
|
Data interface |
Gigabit network/Wifi; Laser data real-time output/control |
|
Power supply junction |
24v |
