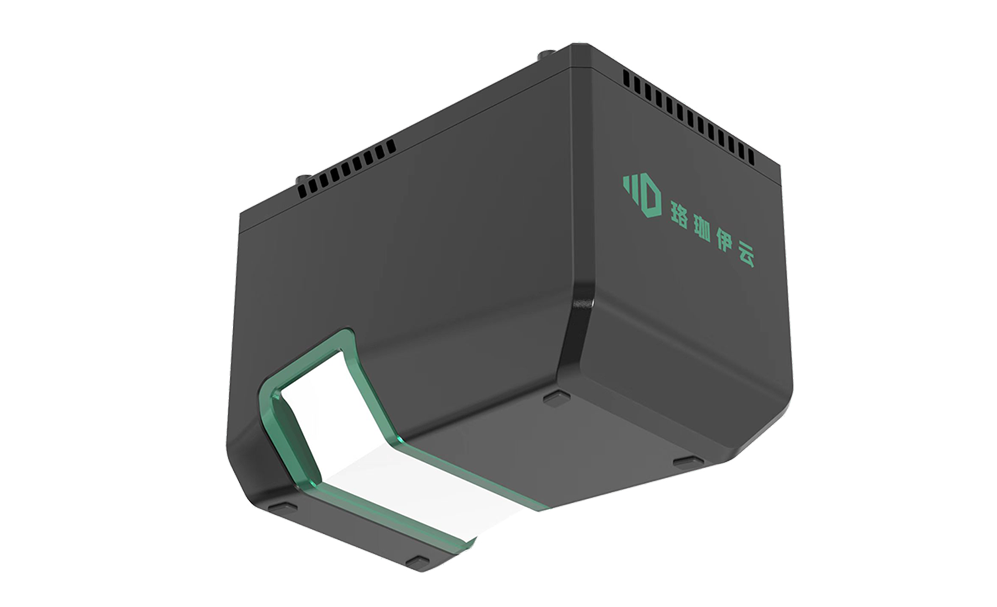

FT-MINI-SC Airborne Laser ScannerThis highly integrated, high-precision laser scanner redefines the "lightweight" laser scanner, offering increased reliability and ease of use.
FT-MINI-SC Airborne Laser Scanner
Product Introduction
Product introduction
The FT-MINI-SC is Luojia Yiyun's latest lightweight, high-precision laser scanner. Weighing only 950g, it can be directly integrated into various drone platforms. It utilizes a 1535nm wavelength laser, 5mm repeatability, a maximum 550kHz frequency, and supports seven echoes, significantly improving performance and redefining the concept of a "lightweight laser scanner." As the flagship of Luojia Yiyun's lightweight laser scanners, the FT-MINI-SC offers users a superior experience with higher precision, reliability, and ease of use.
Specification parameter
Specification parameter
Optical Parameters
| Laser Class | Class 1 |
| Laser Wavelength | 1535nm |
| Beam Divergence | 0.5mrad |
| Measurement Range | 10m~750m@80% |
| Laser Pulse Repetition Rate | 100k~550K |
| Field of View | 80° |
| Angular Measurement Resolution | 0.001° |
| Measurement Technique | Pulse-Phase Type |
| Scan Rate | 300 lines/s |
Laser Parameters
| Repeatability Accuracy | 5mm@100m(1σ) |
| Number of Echoes | Typical 7 Echoes |
| Echo Signal Intensity | 8 bit (radiometric calibration ) |
Size
| Weight | < 0.9kg |
| Dimension | L×W×H 136×90×94 mm |
Work Environment
| Storage Temperature | -20℃~ +50℃ |
| Operating Temperature | -20℃~ +50℃ |
| Light Conditions | Natural Environment |
| Humidity | Non-condensing |
| Protection Level | IP64 |
Power Source
| Rated Voltage | Typical 24 VDC (supports 14V-30V input range) |
| Power Consumption | Approximately 35 W |
Data Interface
| TCP/IP | Gigabit Ethernet |
| PPS Synchronization Signal | Falling Edge Valid (TTL level) |
| GNSS Signal Reception | RX (TTL level） |
