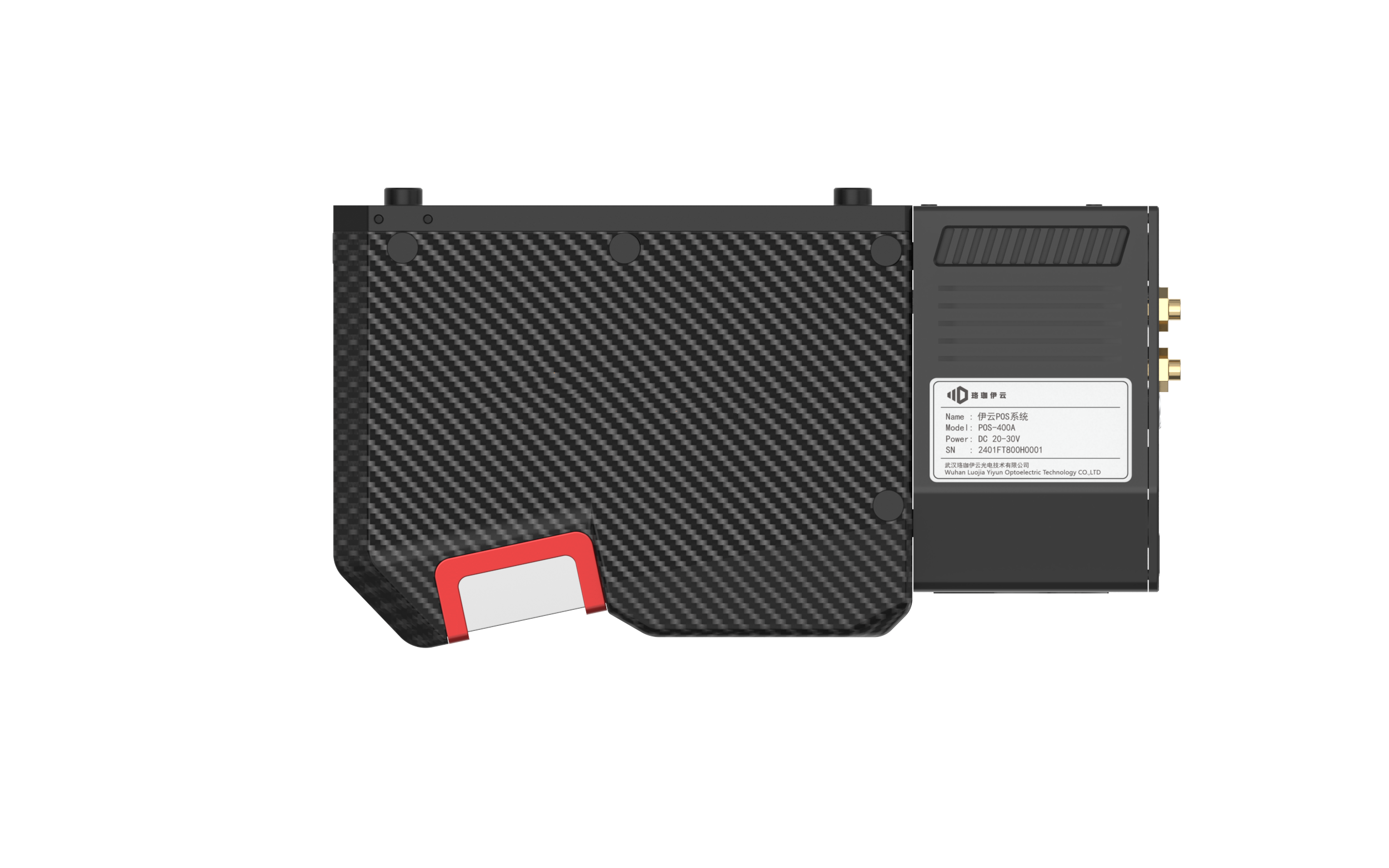

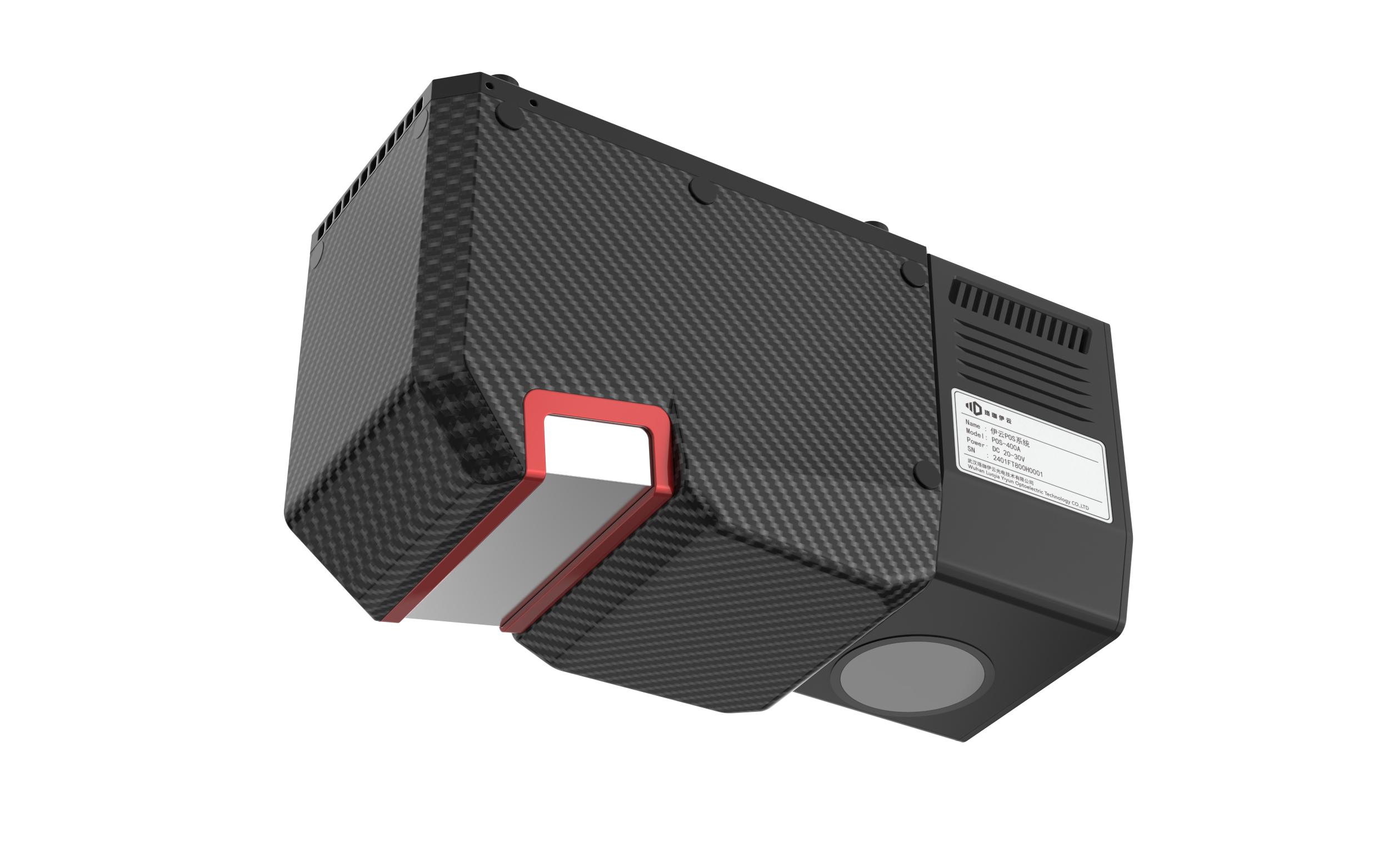

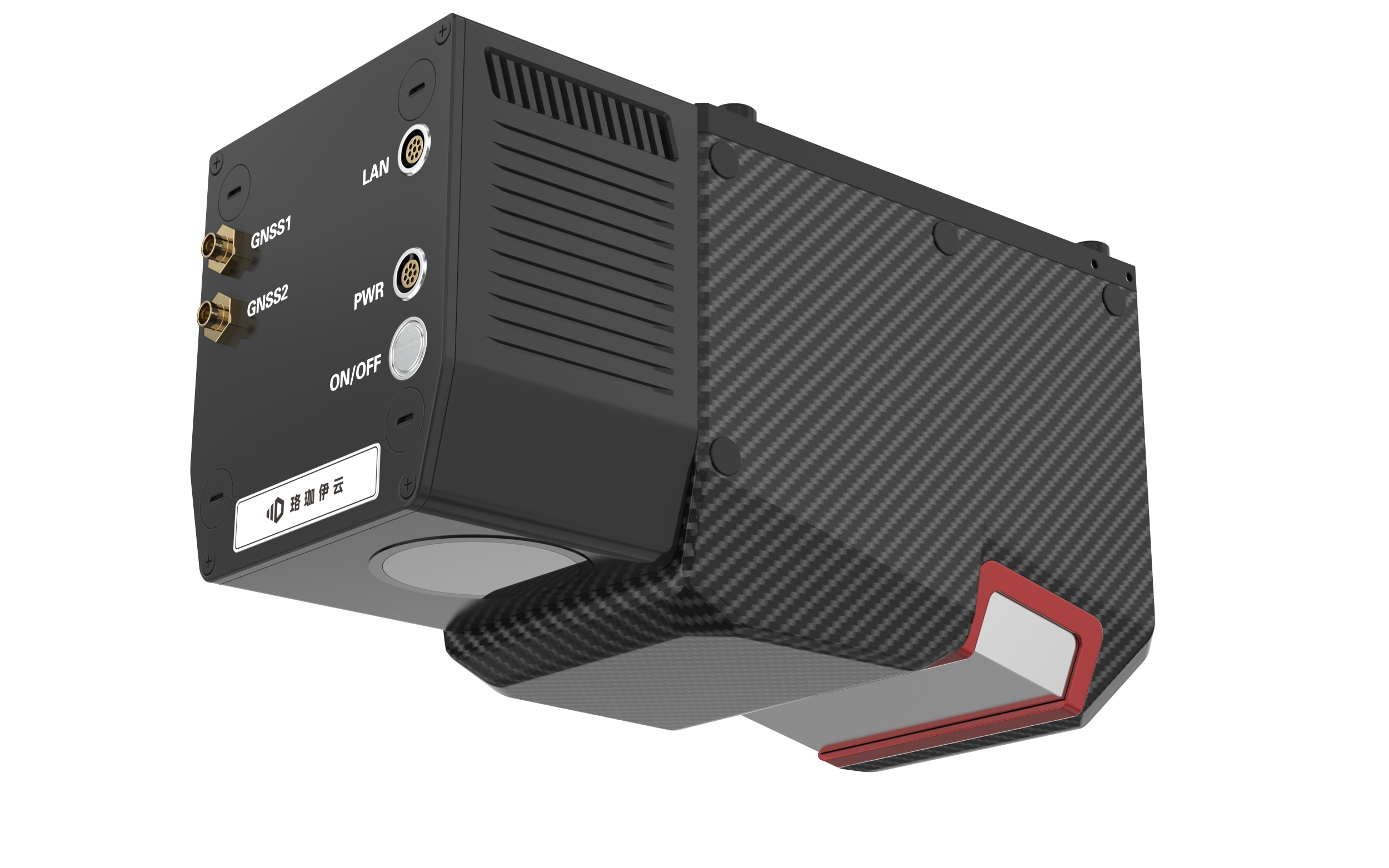

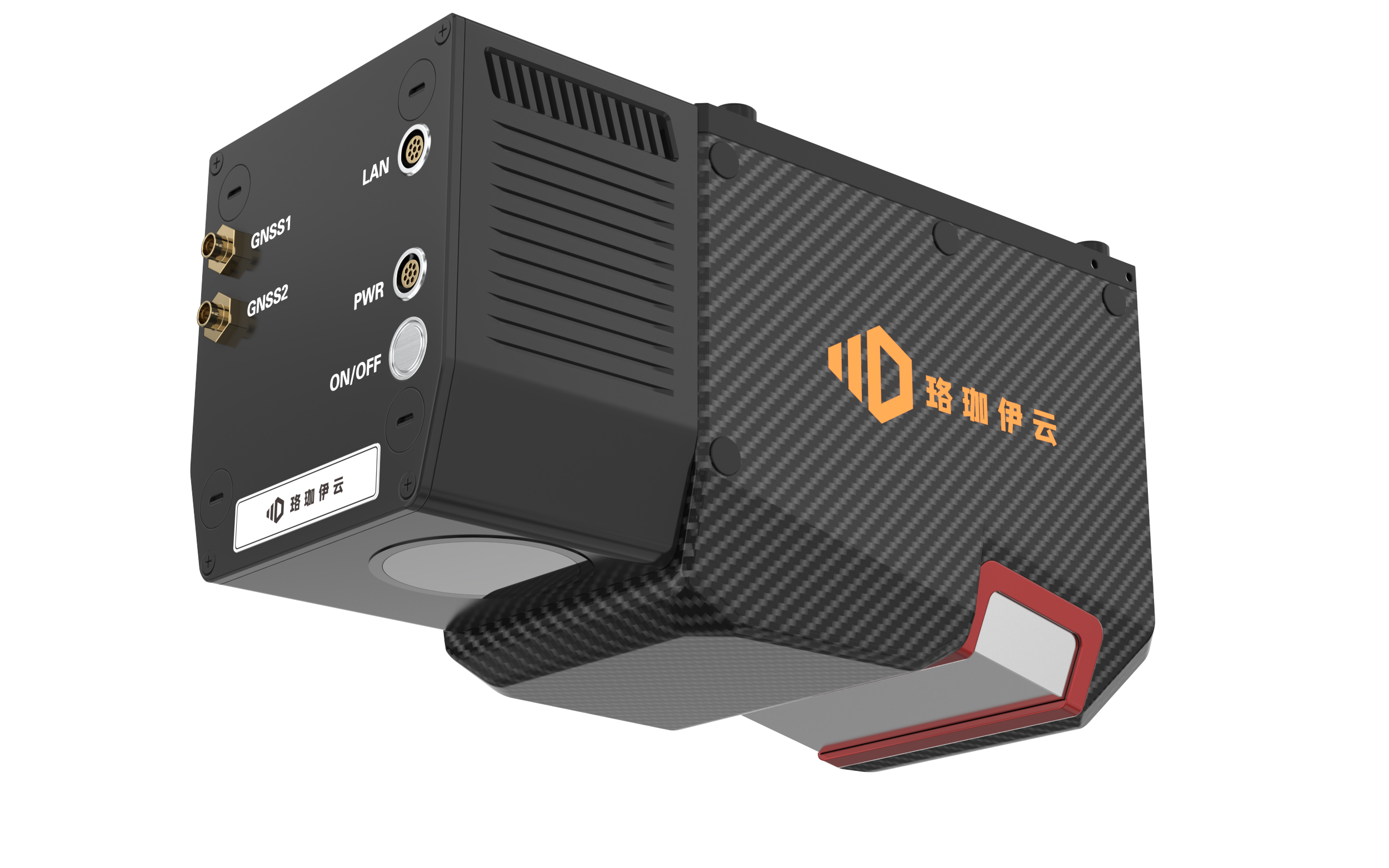

FT-800 Airborne LiDAR SystemCompact and light design, excellent detection capability, adaptability and stability.
- All
- FT-MINI Airborne Laser Scanner
- FT-800 Airborne LiDAR System
- FT-800H Airborne Laser Scanner
- FT-1200 Airborne LiDAR System
- FT-1200H Airborne Laser Scanner
- FT-1500 Airborne LiDAR System
- FT-1500H Airborne Laser Scanner
- MT-HEX Airborne LiDAR System
- MT-HEX Airborne Laser Scanner
- FT-2000 Airborne LiDAR System
- FT-2000H Airborne Laser Scanner
- FT-3000 Airborne LiDAR System
- PRO-360 Mobile Laser Scanner
- D-800 Mobile Laser Scanner
In order to meet the needs of more and more comprehensive users, Wuhan LuJiaYiYun Photoelectric Technology Co., Ltd. has launched a new generation of FT800 laser scanner, which is more compact and light and can be directly integrated in various UAV platforms, open data ports, and meet the needs of various equipment integration sensors. Combined with the original mature sensor technology and the excellent detection ability, adaptability and stability of FT800, it can be widely used in terrain surveying and mapping, power inspection, mine survey, emergency surveying and mapping, natural resources survey, 3D real scene and other fields.
Optical parameter
|
Laser class |
1 |
|
Laser wavelength |
1535nm |
|
Beam divergence |
0.5mrad |
|
Farthest measured distance |
10m~1200m@80% |
|
Laser Pulse Repetition Rate |
100k~2000kHz |
|
Scanning field angle |
100° |
|
Angular resolution |
0.001° |
|
Ranging mode |
Pulse-phase type |
|
Scanning speed |
60~210 lines/second (customizable up to 300 lines/second) |
Laser measurement
| Repeatability Accuracy | 3mm@100m(1σ) |
| Number of Echoes | Typical 7 Echoes |
| Echo Signal Intensity | 8 bit (radiometric calibration ) |
| Built-in storage | 256GB |
POS measurement
| Orientation Accuracy（RMS） | (R;P;H):0.005°；0.005°；0.012° |
| Post-processed Position Accuracy | Horizontal: 0.01m; Vertical: 0.02m |
Camera (optional)
| pixel | 26 MP |
| Focal length | 16mm |
| Field of view | Long side: 72.59°, short side: 51.98° |
| Trigger frequency | Up to 2HZ (supporting one-touch photo taking) |
Size
| Weight | About 2.3kg (including IMU, GNSS, storage, and camera) |
| Dimension | L×W×H 235*110*131mm |
Working environment
|
Operating temperature |
-20℃~ +55℃ |
|
Storage temperature |
-20℃~ +50℃ |
|
Light condition |
Natural Environment |
|
Humidity |
Non-condensing |
|
Protection Level |
IP64 |
Power Source
| Rated Voltage | Typical 24 VDC (supports 20V-30V input range) |
| Power Consumption | Approximately 65 W |
Data interface
|
TCP/IP |
Gigabit Ethernet |
|
GNSS received signal |
SMA (female threaded male connector) |
