- D-800 Mobile Laser Scanner

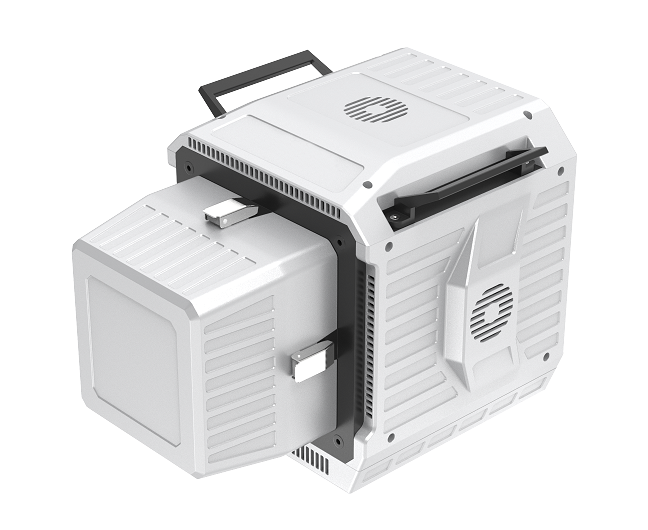

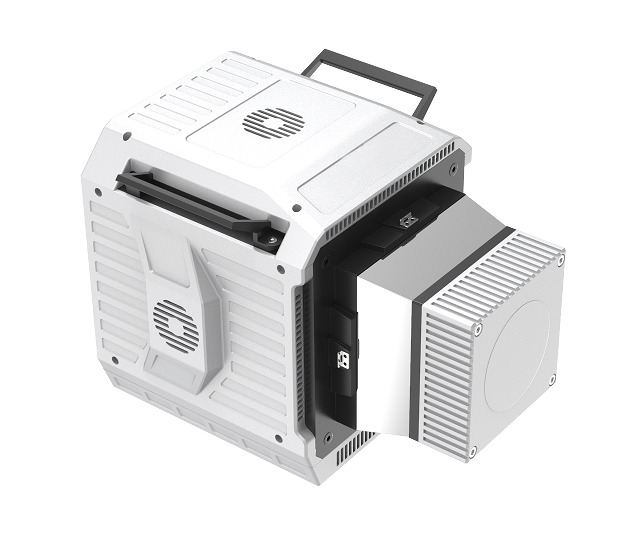

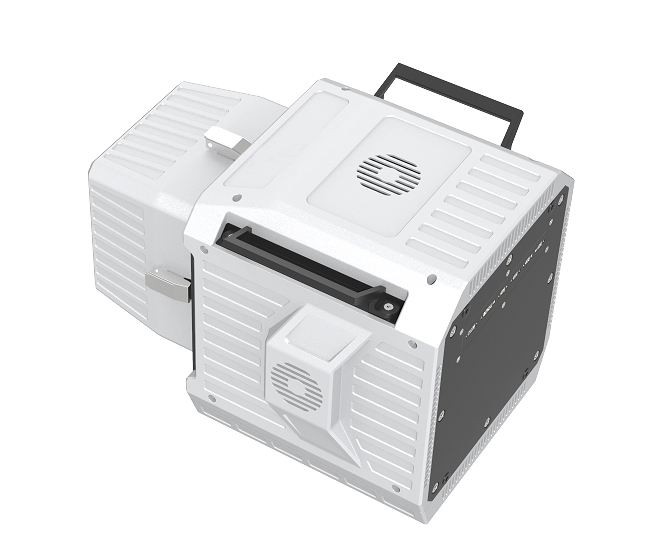

The D-800 Scanner is a high-precision mobile laser scanning system. It employs a pyramidal mirror rotating scanning technology, consisting of four sets of 90° pyramidal mirror scanning modules that collectively form a 360°scanning system. The main motor achieves a maximum rotation speed of 200 Hz. Combined with the rotation of the four-faceted pyramidal mirror within each module, a single lens can scan four lines per revolution. This configuration results in a rotational scanning mode of 800 lines per second, thereby achieving high-density point cloud coverage of 8 million points per second within the scanning range. The device is widely applicable in fields such as 3D tunnel structure inspection and existing railway survey and measurement.
Optical Parameter
| Laser Class | Class 1 |
| Laser Wavelength | 1550 nm |
| Beam Divergence | 0.5 mrad |
| Measurement Range | 0.5 m~50 m@10% |
| Laser Pulse Repetition Rate | 500 k ~ 8000 kHz |
| Field of View | 360° |
| Angular Measurement Resolution | 0.001° |
| Measurement Technique | Pulse-phase ranging |
| Scan Rate | 100~800 lines/sec |
Laser measurement
| Repeatability Precision | 1 mm@30m(1σ) |
| Max. Number of Targets Per Pulse | 1 |
| Echo Signal Intensity | 8bit (Radiation correction) |
Dimension
| Weight | Approx. 17 kg |
| Size | Length * width * height |
| 383.5*279*279mm |
Working environment
| Operating Temperature Range | -20℃~ +50℃ |
| Storage Temperature Range | -20℃~ +50℃ |
| Light condition | Natural environment |
| Humidity | Non-condensing |
| Protection Class | IP65 |
Power source
| Power Supply Input Voltage | 24V DC/10 A(24-32 V input range) |
| Power Consumption | Approx. 250 W |
Data interface
| TCP/IP | Gigabit Ethernet |
| PPS Synchronization Signal | Falling Edge Valid (TTL Level) |
| GNSS Signal Reception | RX (RS-232 Level) |
