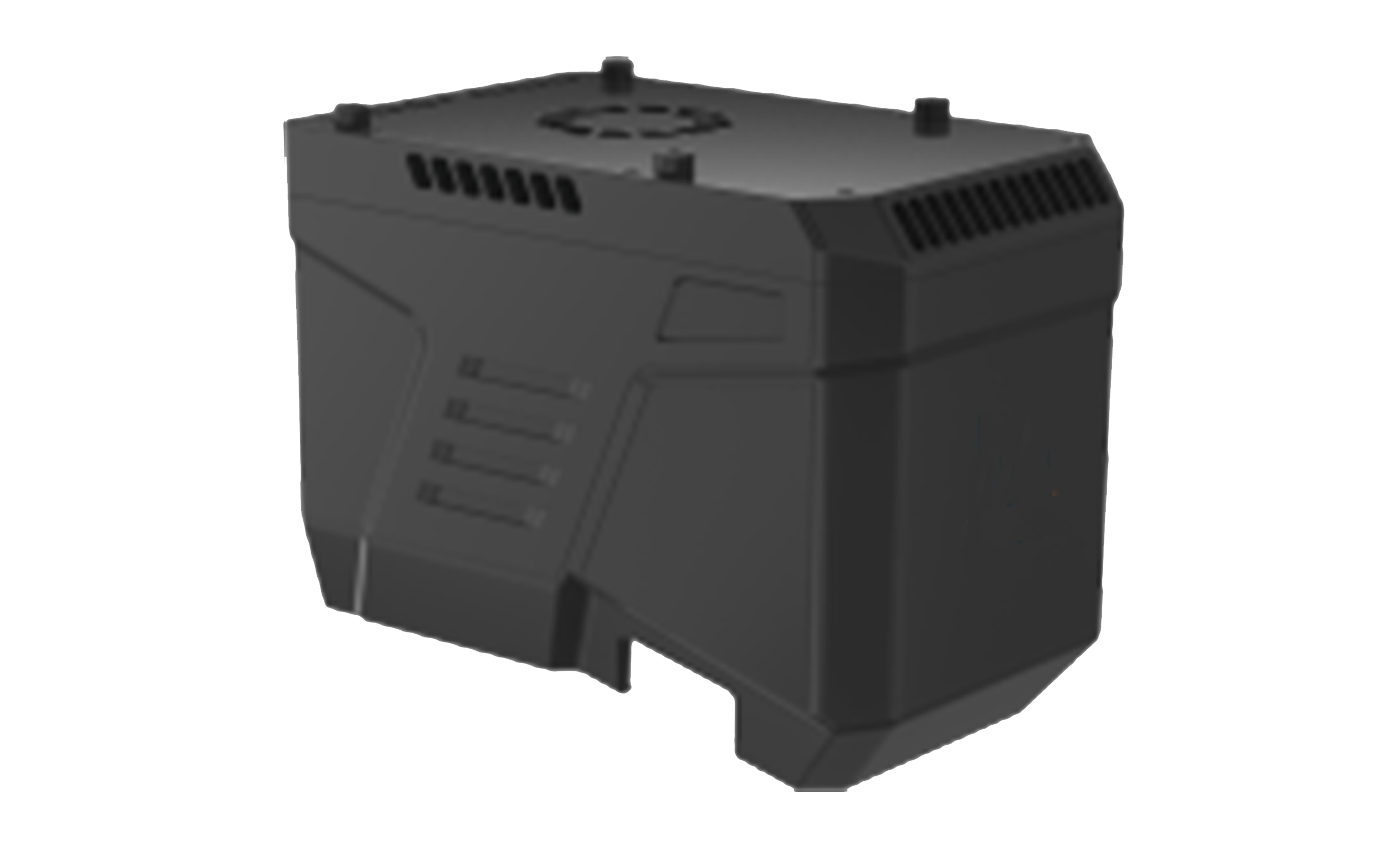

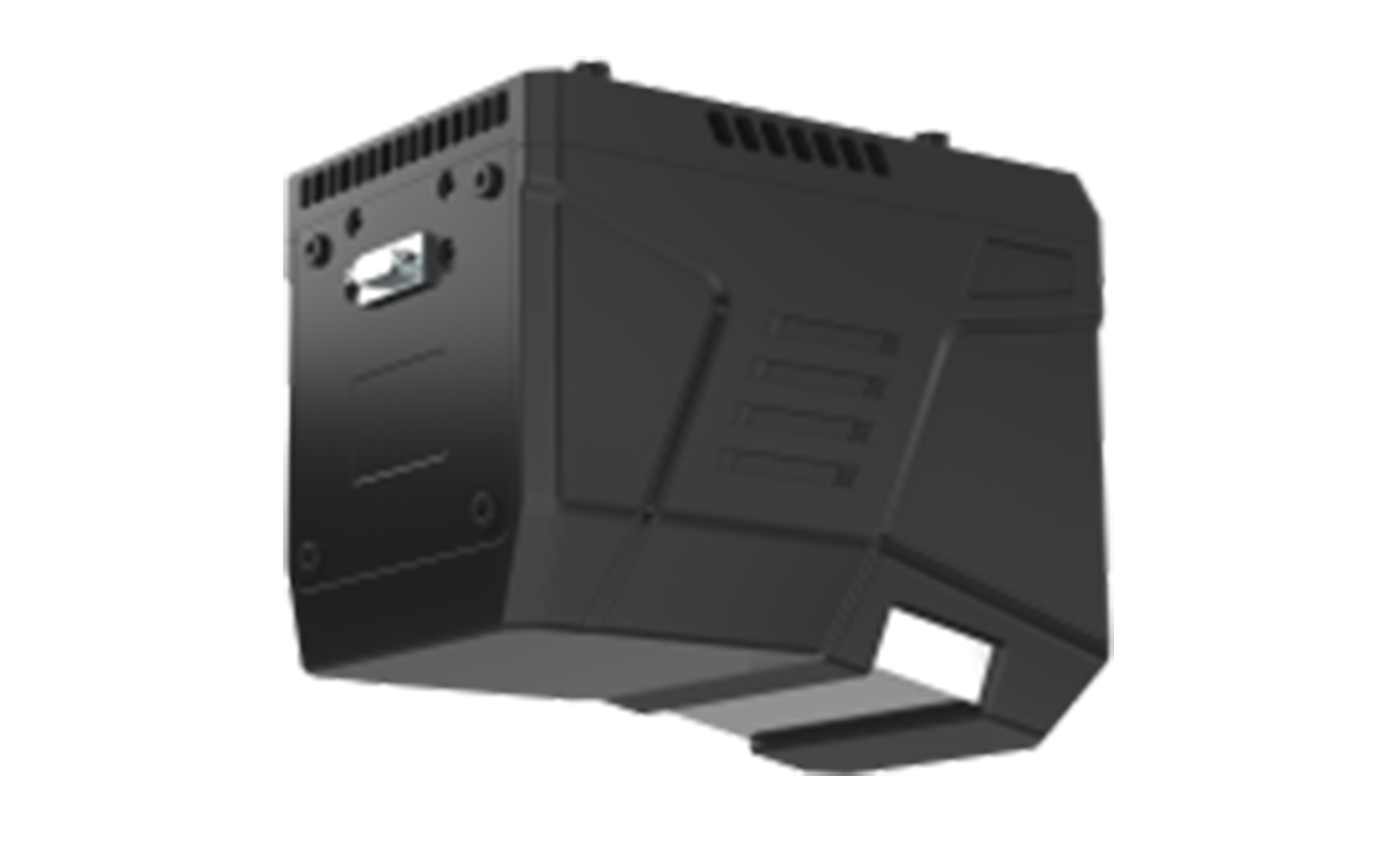

FT-1200H Airborne Laser ScannerMedium-to-long range high-precision airborne laser scanner for versatile application developments.
The FT-1200H is a medium-to-long range, high-precision airborne laser scanner weighing only approximately 1.9 kg. It features open data ports, supporting flexible integration with multiple sensors such as POS and cameras, allowing the complete system to be mounted on various UAV platforms to meet the integration needs of diverse operational scenarios.Built on proven laser detection technology, the FT-1200H offers a maximum measurement range of 1,500 m, a repeatability of 5 mm @ 100 m, and supports up to 7 target returns. Its strong beam penetration capability enables accurate acquisition of under-canopy terrain. With a 100°wide field of view and a maximum pulse repetition rate of 2,000 kHz, it ensures efficient data acquisition. The scanner is widely used in applications such as topographic mapping, power line inspection, mine surveying, emergency mapping, natural resource surveys, and 3D reality modeling.
Optical parameter
|
Content |
Index |
|
Laser Class |
Class 1 |
|
Laser Wavelength |
1550 nm |
|
Beam Divergence |
0.5 mrad |
|
Measuring Range |
5 m~1500 m@80% |
|
Laser Pulse Repetition Rate |
100 k ~ 2000 kHz |
|
Field of View (FOV) |
100° |
|
Angular Measurement Resolution |
0.001° |
|
Measurement Technique |
Pulse-phase ranging |
|
Scan Rate |
60~210 lines/sec |
Laser measurement
|
Repeatability Precision |
5mm@100m(1σ) |
|
Max. Number of Targets Per Pulse |
Up to 7 echoes |
|
Echo Signal Intensity |
8bit (Radiation correction) |
Dimension
|
Weight |
Approx. 1.9 kg |
|
Size |
Length * width * height |
|
|
180*115*145 mm |
Working environment
|
Operating Temperature Range |
-20℃~ +50℃ |
|
Storage Temperature Range |
-20℃~ +50℃ |
|
Light condition |
Natural environment |
|
Humidity |
Non-condensing |
|
Protection Class |
IP64 |
Power source
|
Power Supply Input Voltage |
24V DC(20-30 V input range) |
|
Power Consumption |
Approx. 55W |
Data interface
|
TCP/IP |
Gigabit Ethernet |
|
PPS Synchronization Signal |
Falling Edge Valid (TTL Level) |
|
GNSS Signal Reception |
RX (TTL Level) |
