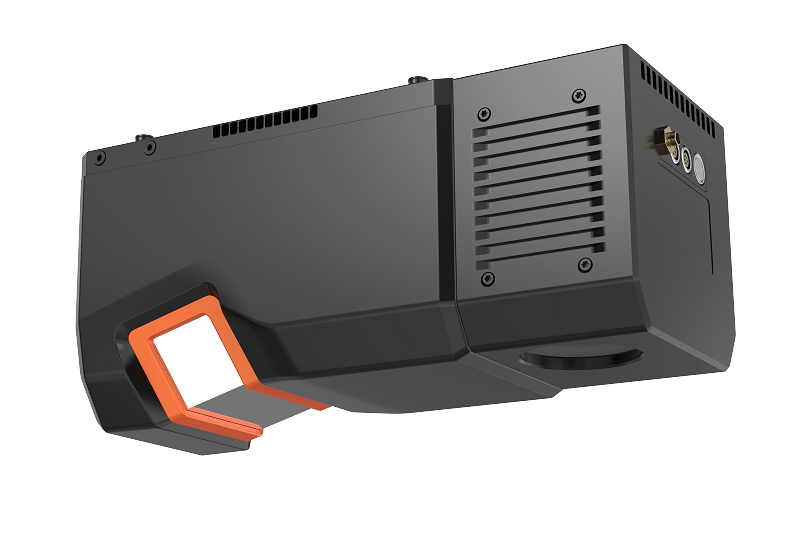

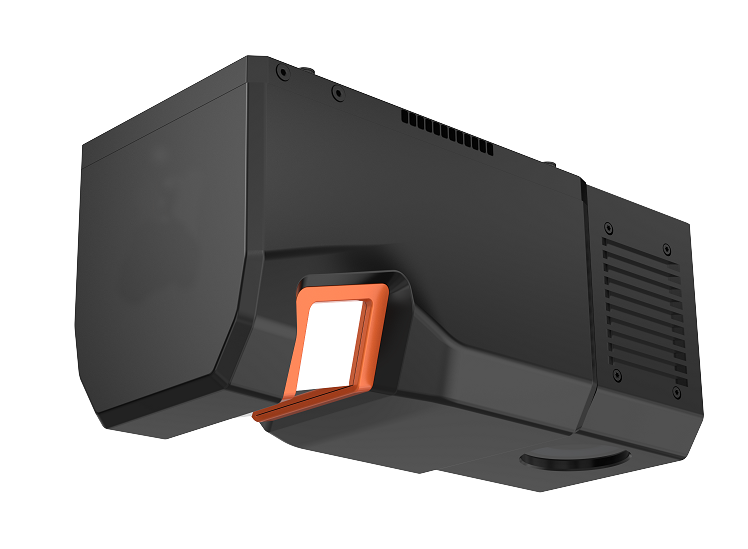

FT-2000 Airborne LiDAR SystemLong-range, high-precision airborne LiDAR system, deployable on multiple aerial platforms.
The FT-2000 is a high-performance airborne LiDAR system featuring a highly integrated design with a weight of ≤3.1 kg (including IMU, GNSS, storage, and camera), making it adaptable to various UAV platforms. With a maximum measurement range of 2,520 m (at 80% reflectivity) , a repeatability of 3 mm @ 100 m, and support for up to 16 target returns, the system offers exceptional vegetation penetration capability. Its 75° field of view and maximum pulse repetition rate of 2,000 kHz, combined with ALV (Anti-Light Velocity) - a real-time online processing function that overcomes the speed-of-light limitation - significantly enhance point cloud density and operational efficiency. Widely used in applications such as topographic mapping, power line inspection, and 3D reality modeling, the FT-2000 serves as a core solution for long-range, high-precision 3D data acquisition.
Optical parameter
|
Content |
Index |
|
Laser Class |
Class 1 |
|
Laser Wavelength |
1550 nm |
|
Beam Divergence |
0.5 mrad |
|
Measuring Range |
10 m~2520 m@80% |
|
Laser Pulse Repetition Rate |
100 k ~ 2000 kHz |
|
Field of View (FOV) |
75° |
|
Angular Measurement Resolution |
0.001° |
|
Measurement Technique |
Pulse-phase ranging |
|
Scan Rate |
80~400 lines/sec |
Laser measurement
|
Repeatability Precision |
3 mm@100m(1σ) |
|
Max. Number of Targets Per Pulse |
Up to 16 echoes |
|
Echo Signal Intensity |
8 bit (Radiation correction) |
|
Internal Data Storage |
256 G |
POS specifications
|
Post-processed Attitude Accuracy |
Roll/Pitch: 0.005° |
|
|
Heading: 0.01° |
|
Post-processed Positioning Accuracy |
Horizontal: 0.01 m |
|
|
Vertical: 0.02 m |
|
Data Update Rate |
600Hz |
Camera specifications
|
Pixel |
45MP |
|
Focal Length |
18 mm |
|
Field of View (FOV) |
90°(long edge) |
|
|
67°(short edge) |
|
Trigger Frequency |
Up to 1 Hz |
|
|
(single-shot trigger supported) |
Dimension
|
Weight |
Approx. 3.1 kg（including IMU, GNSS, storage, and camera） |
|
Size |
Length * width * height |
|
|
285*127*140.9 mm |
Working environment
|
Operating Temperature Range |
-20℃~ +50℃ |
|
Storage Temperature Range |
-20℃~ +50℃ |
|
Light condition |
Natural environment |
|
Humidity |
Non-condensing |
|
Protection Class |
IP64 |
Power source
|
Power Supply Input Voltage |
24V DC(20-32 V input range) |
|
Power Consumption |
Approx. 70 W |
Data interface
|
TCP/IP |
Gigabit Ethernet |
|
GNSS Antenna |
SMA Male (with internal threads) |
