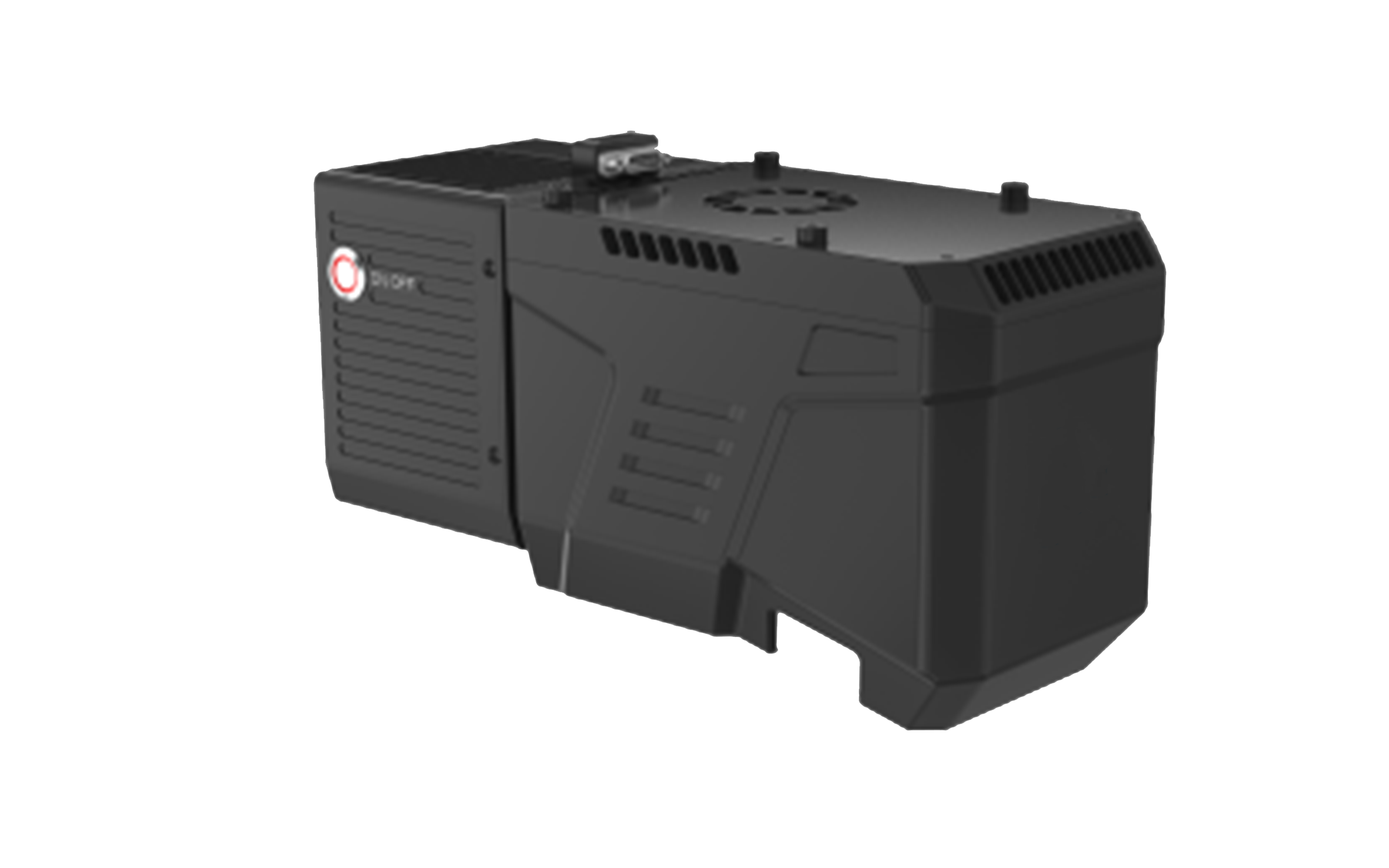

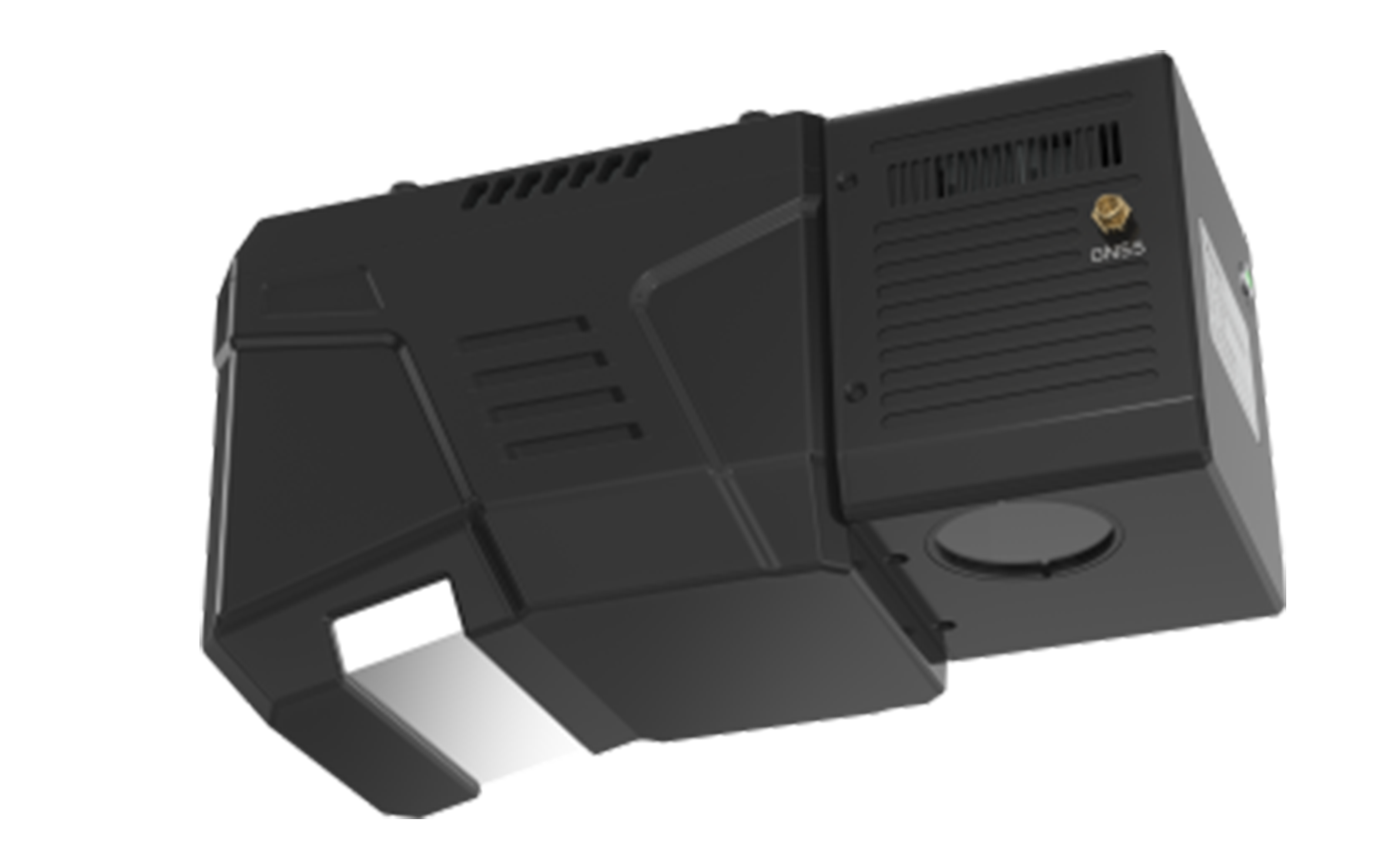

FT-1200 Airborne LiDAR SystemMedium-to-long range high-precision airborne LiDAR system, compatible with various UAV platforms.
The FT-1200 is a medium-to-long-range, high-precision airborne LiDAR system featuring a highly integrated design with a net weight of only 2.7 kg (including IMU, GNSS, storage, and camera), making it compatible with a wide range of UAV platforms.With a maximum measurement range of 1,500 m and a repeatability of 5 mm @ 100 m, the system supports up to 7 target returns, ensuring strong vegetation penetration capability. Its 100°wide field of view and maximum pulse repetition rate of 2,000 kHz guarantee efficient high-density point cloud acquisition. Paired with the self-developed point cloud fusion software, the FT-1200 is widely applicable in fields such as topographic mapping, power line inspection, and 3D reality modeling, serving as an ideal solution for efficiently acquiring high-precision 3D geospatial information.
Optical parameter
|
Content |
Index |
|
Laser Class |
Class 1 |
|
Laser Wavelength |
1550 nm |
|
Beam Divergence |
0.5 mrad |
|
Measuring Range |
5 m~1500 m@80% |
|
Laser Pulse Repetition Rate |
100 k ~ 2000 kHz |
|
Field of View (FOV) |
100° |
|
Angular Measurement Resolution |
0.001° |
|
Measurement Technique |
Pulse-phase ranging |
|
Scan Rate |
60~210 lines/sec |
Laser measurement
|
Repeatability Precision |
5 mm@100m(1σ) |
|
Max. Number of Targets Per Pulse |
Up to 7 echoes |
|
Echo Signal Intensity |
8 bit (Radiation correction) |
|
Internal Data Storage |
256 G |
POS specifications
|
Post-processed Attitude Accuracy |
Roll/Pitch: 0.005° |
|
|
Heading: 0.01° |
|
Post-processed Positioning Accuracy |
Horizontal: 0.01 m |
|
|
Vertical: 0.02 m |
|
Data Update Rate |
600 Hz |
Camera specifications
|
Pixel |
45 MP |
|
Focal Length |
18 mm |
|
Field of View (FOV) |
90° (long edge) |
|
|
67° (short edge) |
|
Trigger Frequency |
Up to 1 Hz |
|
|
(single-shot trigger supported) |
Dimension
|
Weight |
Approx. 2.7 kg（including IMU, GNSS, storage, and camera） |
|
Size |
Length * width * height |
|
|
270*115*154 mm |
Working environment
|
Operating Temperature Range |
-20℃~ +50℃ |
|
Storage Temperature Range |
-20℃~ +50℃ |
|
Light condition |
Natural environment |
|
Humidity |
Non-condensing |
|
Protection Class |
IP64 |
Power source
|
Power Supply Input Voltage |
24V DC(20 - 30 V input range) |
|
Power Consumption |
Approx. 65 W |
Data interface
|
TCP/IP |
Gigabit Ethernet |
|
GNSS Antenna |
SMA Male (with internal threads) |
